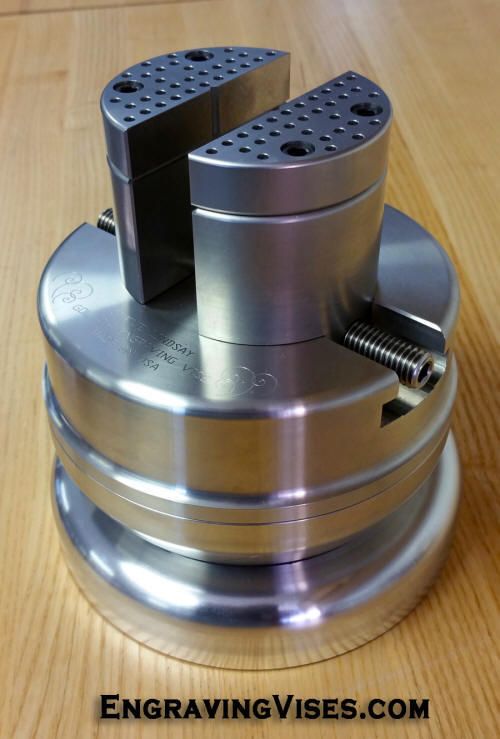

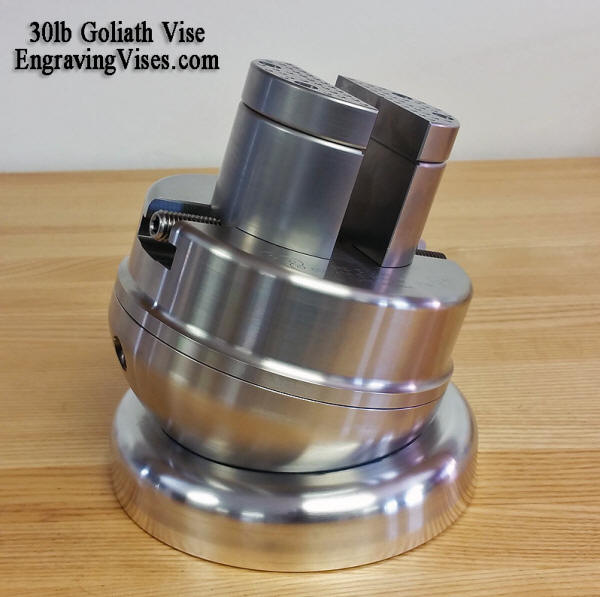

Goliath Engraving Ball Vise
Made in USA!

Click photos to enlarge


The Goliath Engraving Vise is a medium profile block, providing transition benefits between a high profile and a low profile block.

Oct. 2016 - Please note: The Goliath Vise is being changed to be made from stainless steel and a new base.  The jaws will be from hardened stainless as well as the pin plates and lead screw will be hardened, similar to the PalmControl vise and Titan vise.  Current target date is late Dec 2016.

Benefits to a medium profile vise
**Can be tilted over farther than a low profile.
**When viewing under a microscope,  a medium profile designed vise allows one to tilt the block without the viewing location moving as far away as it does with a high profile.
**Lower center of gravity provides stability so that the vise does not tend to fall over as easily as a high profile vise when titled.

Goliath Vise Features
**
6" Diameter.
**2.5" high vise jaws with pin plate (1.75 without)
**Adjustable friction drag
**Precision machined and precision fit jaws
**High quality surface finishes
**Machined sphere mating base
**Includes pin plates, base and wrench.
**Three holes in jaws accept pin vise or custom fixtures
**Height from base to top of jaws 6"
**Jaw width 3"
**Maximum jaw opening 3.50"
**
Weight 30 lbs.

Goliath Engraving Vise $629
  temporarily out of stock (see note in color red above)

Goliath Engraving Vise with Leather ring fixture $665
temporarily out of stock (see note in color red above)
