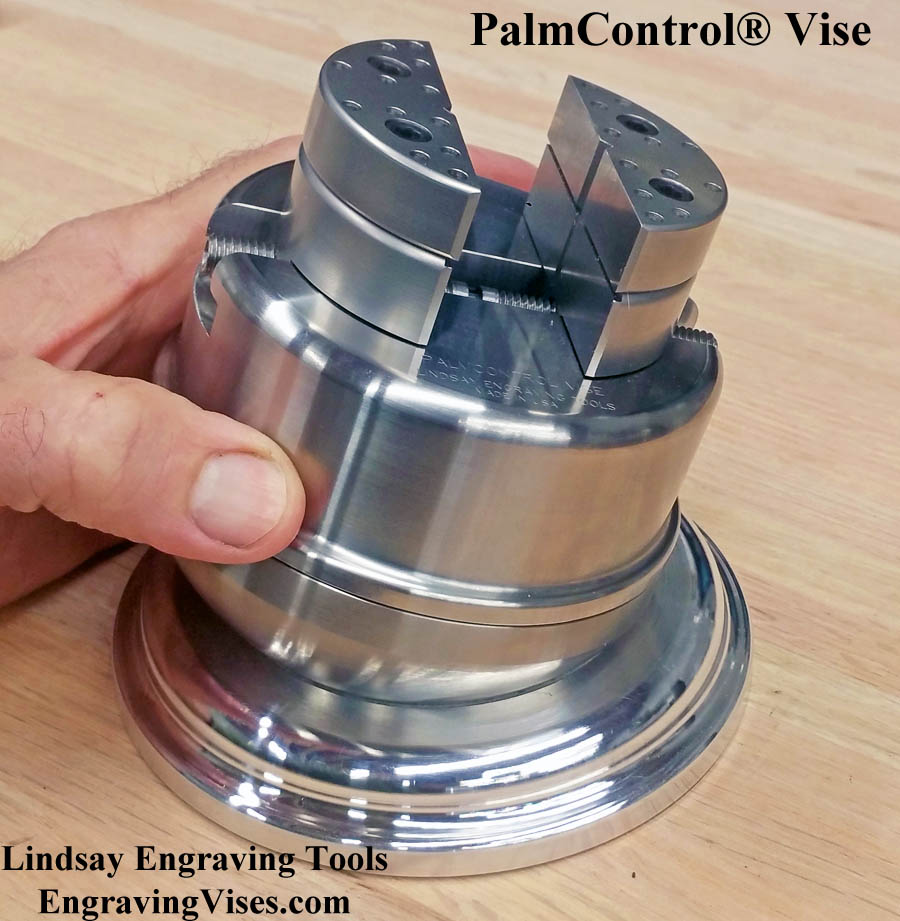

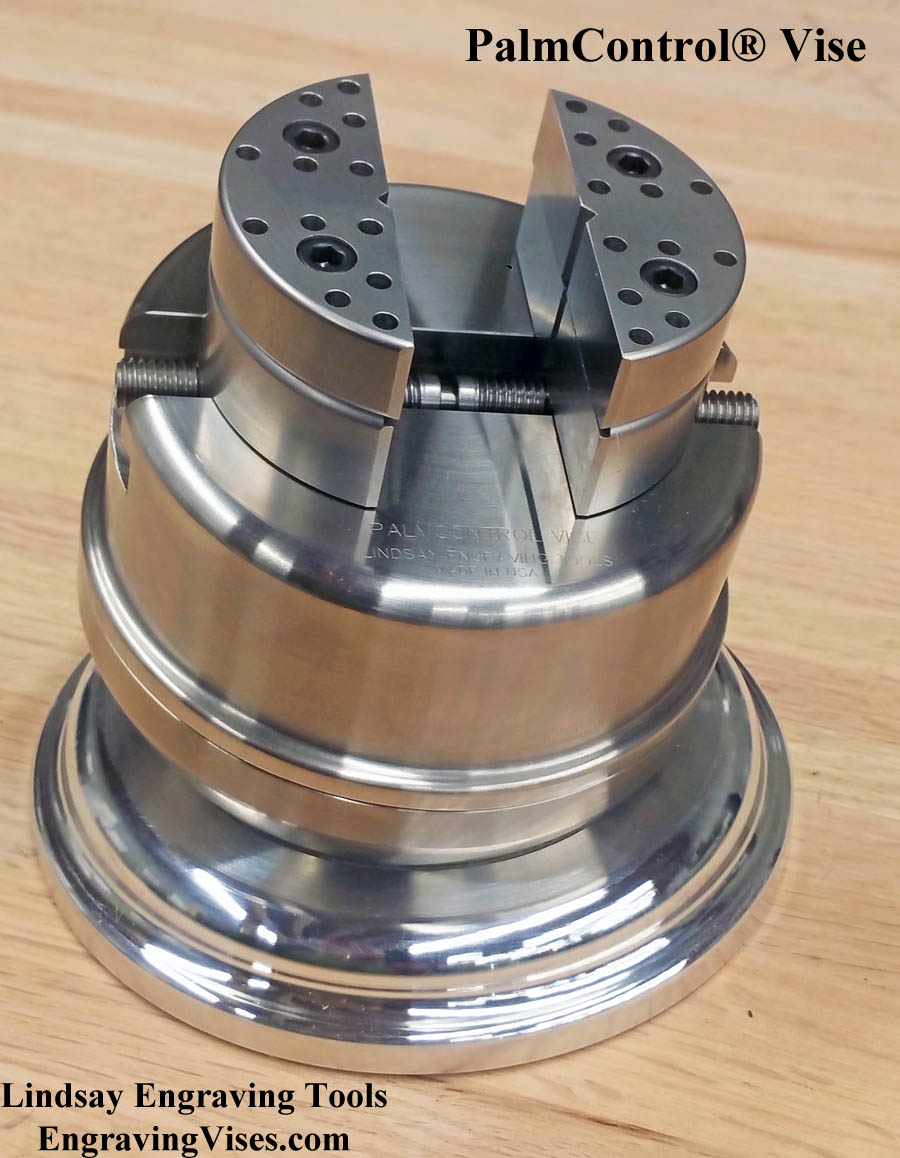

PalmControl® Vise Engraving Ball Vise

Click photos to enlarge

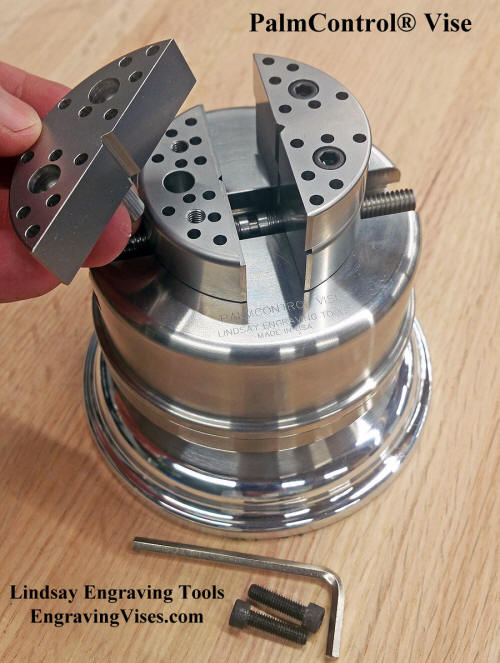

There are additional pin holes under the pin plates
that can be utilized.

PalmControl® Ball Vise Features:
*
Stainless steel construction
*Jaws, pin plates and lead screw are hardened stainless
*Adjustable friction brake
*Precision machined
*Pin plates have pin holes with a smaller hole through the plate for ease of cleaning out the holes.
*Threaded holes in jaws accept pin plates or custom fixtures.
*Patented Multi-Coin jaws screw right on the PalmControl vise jaws.
*Jaw width 1.75"
*Maximum jaw opening 2.4"
*Includes pin plates, pins, base and wrench.
*4" Body Diameter
*Shipping weight 14 lbs.

PalmControl Vise
PalmControl Vise with
Self-Holding T-Wrench, 10 pins and Allen wrench
$684
If you try and add one to your cart
but if the cart says zero (0) it means they are out of stock.



Steve Lindsay's tip: The metal base is leather lined.  From one engraver to another some like and engrave ball to stay in place with good grip when it is tilted and others like to tilt the vise around about as much as rotating it and so they like less grip.  The vises are shipped with the amount of grip Steve prefers smooth move but with some grip to stay in place.   If you prefer a ball vise with less grip then you can rub a little cornstarch on the leather.  In this way the amount of grip can be adjusted.   If you get it with less grip than you were wanting you can give it more grip again by sticking tape on the leather and pulling it up in order to clean some of the cornstarch off.

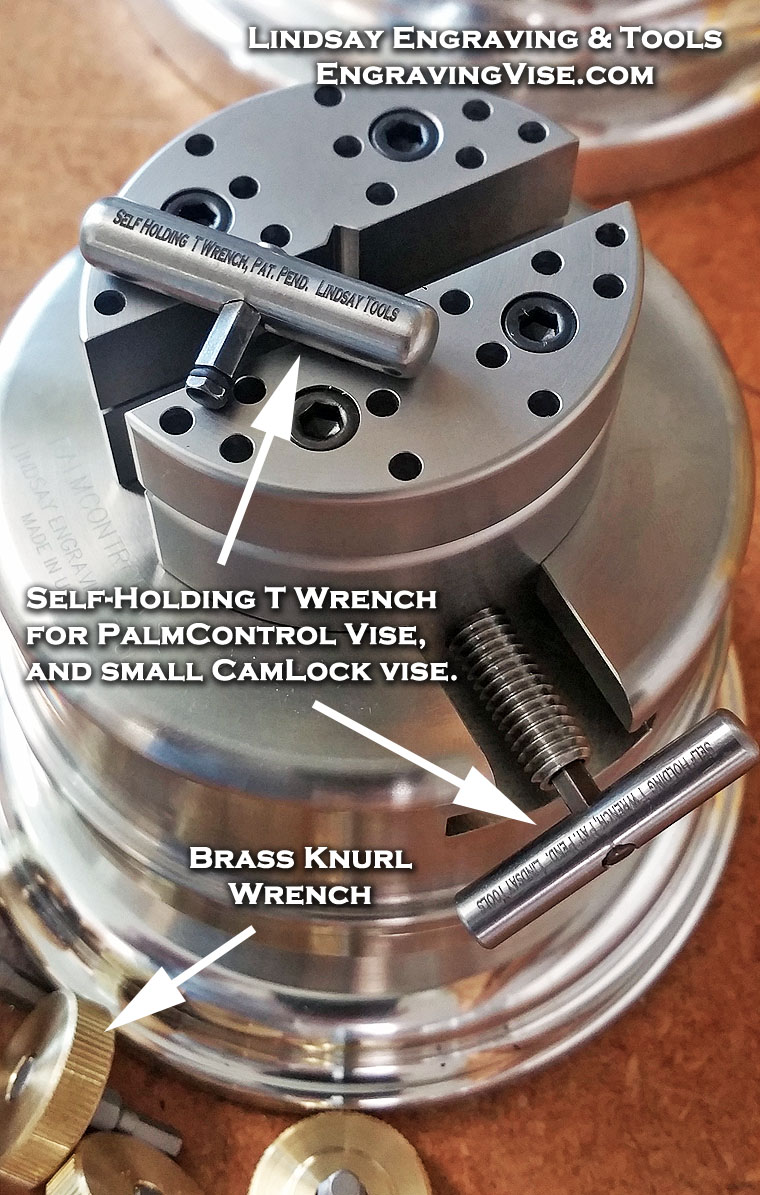

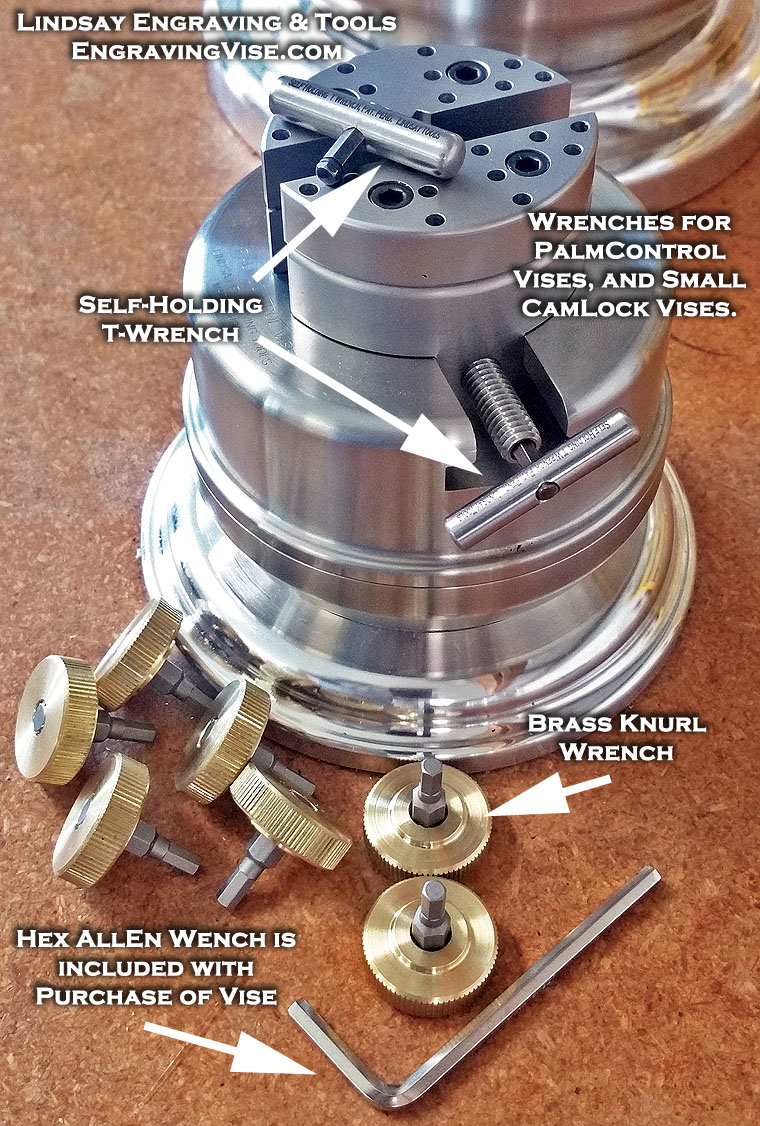

Wrenches for PalmControl Vises, and Small CamLock Vises.


Self-holding t-wrench, pat. pend. is small enough that it can be left in place while engraving, so no more looking for the wrench.  Or it can be removed.  Hex is made from tool steel that is hardened and tempered.  The T is stainless.

Round Brass Knurl Wrench for PalmControl vise, and small CamLock vise. -- $24.00

Self-Holding T Wrench for PalmControl Vise, and small CamLock vise. -- $46.00


Leather Ring Fixture for Vise pin plates

Place these in vise pin plates to hold rings or other items.
They fit the pin plates on the Low Profile vise, later Goliath vises and PalmControl® vises. Find more information about these holders on the vise accessory page.
Leather Ring Holder: $56 add_to_cart.gif

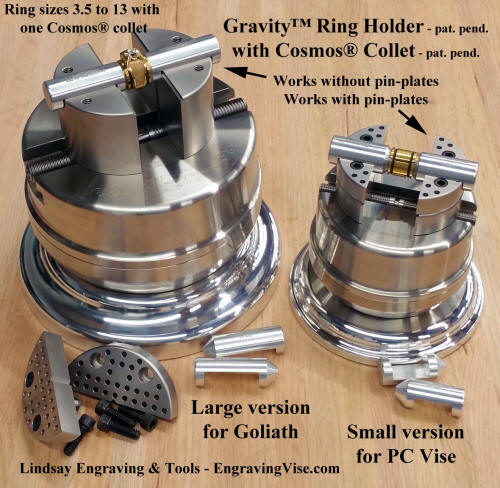

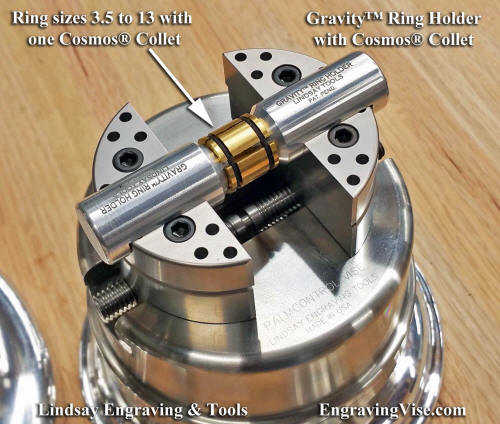

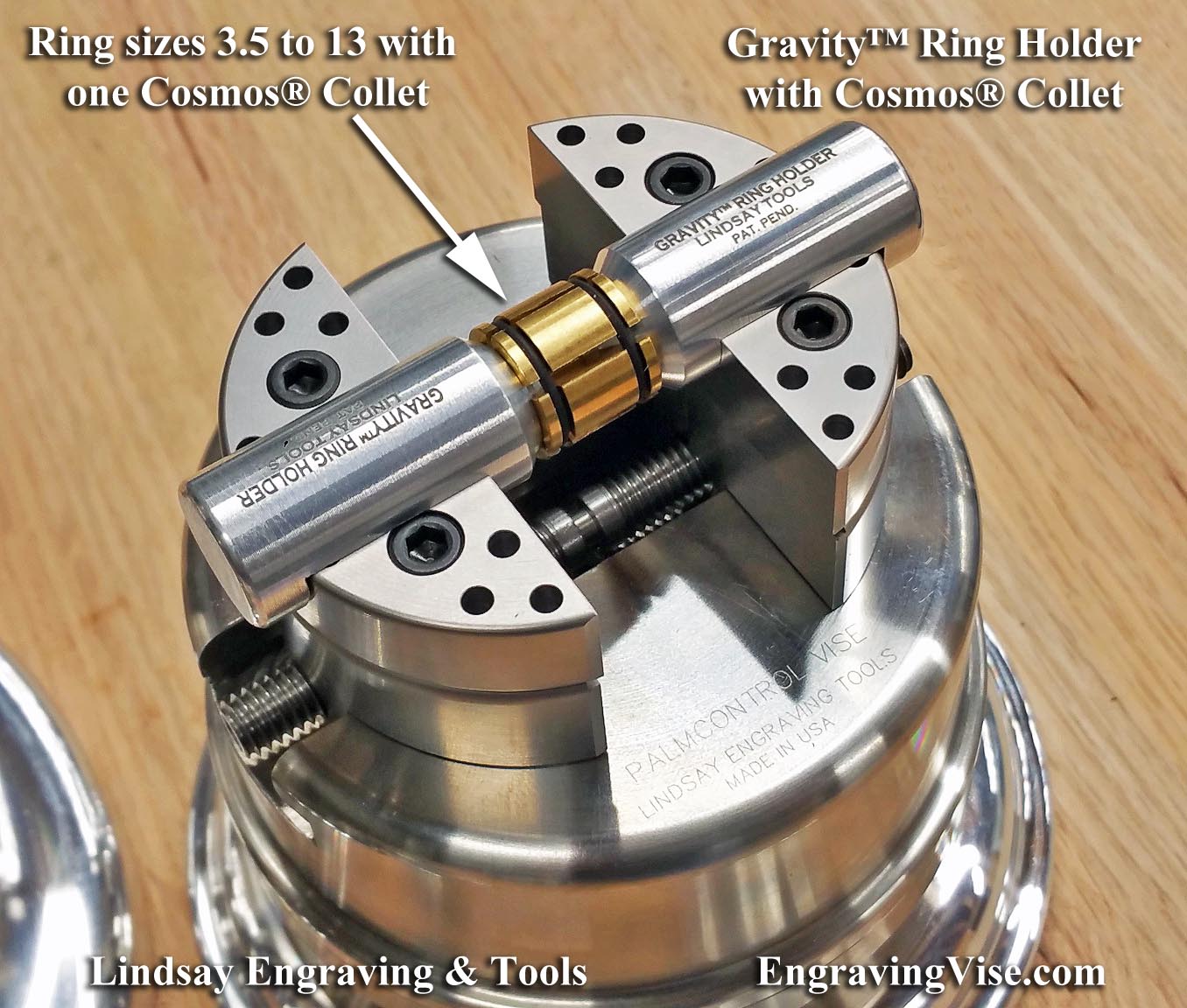

Gravity™ Ring Holder


Gravity Ring Holder for PC Vise (centers only) $49add_to_cart.gif
Gravity Ring Holder for Goliath (centers only) $57 add_to_cart.gif
Brass 6 finger collet $25 add_to_cart.gif
Brass 12 finger collet $35 add_to_cart.gif

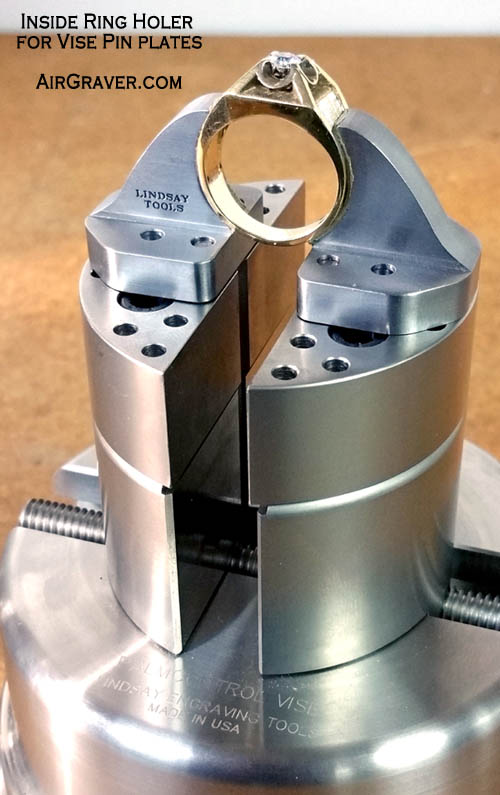

Inside Ring Holder

Place these in vise pin plates to hold rings from the outside, to allow inside engraving, as well as access to the top of the ring. They are made from solid stainless and the faces are leather lined.  Find more information about these holders on the vise accessory page.

Inside Ring Holder for Vise pin plates Price $76
add_to_cart.gif  view_cart.gif



The jaws of the multi coin holder will bolt directly to the jaws of the PalmControl Vise once the pin plates are remove.
